More than 60% of recent broadband deployments in urban United States projects now call for fiber-to-the-home. That accelerated move toward full-fiber networks underscores the growing need for high-performance line output equipment.
Fiber Cable Sheathing Line
Fiber Secondary Coating Line
Compact Fiber Unit
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) provides automated FTTH cable production line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics combines machines and control systems. It produces drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, and LANs.
This modern FTTH cable making machinery offers measurable business value. It enables higher throughput and consistent optical performance with low attenuation. It also complies with IEC 60794 and ITU-T G.652D / G.657 standards. Customers benefit from reduced labor costs and material waste through automation. Full delivery services cover installation and operator training.
The FTTH cable production line package includes fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also covers SZ stranding line, fiber ribbone line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs often rely on Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model covers on-site commissioning by experienced engineers, remote monitoring, together with rapid troubleshooting. It additionally provides lifetime technical support as well as operator training. Clients are typically required to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Key Takeaways
- FTTH production line systems meet growing U.S. demand for fiber-to-the-home deployments.
- Complete turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular configurations use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Integrated modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Advanced FTTH cable machinery reduces labor, waste, and improves optical consistency.
- Support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
FTTH Cable Production Line Technology Explained
This fiber optic cable line output process for FTTH requires precise control at every stage. Cable makers rely on integrated lines that combine drawing, coating, stranding, and sheathing. This method boosts yield and speeds up market entry. The line serves the needs of both residential together with enterprise deployments in the United States.
Below, we outline the core components together with technologies driving modern manufacturing. Each module must operate featuring precise timing as well as reliable feedback. This choice of equipment shapes product quality, cost, and flexibility for various cable designs.
Modern Fiber Optic Cable Manufacturing Components
Secondary coating lines apply dual-layer coatings, often 250 µm, using fast-cycle UV curing. Tight buffering and extrusion systems deliver 600–900 µm jackets for indoor and drop cables.

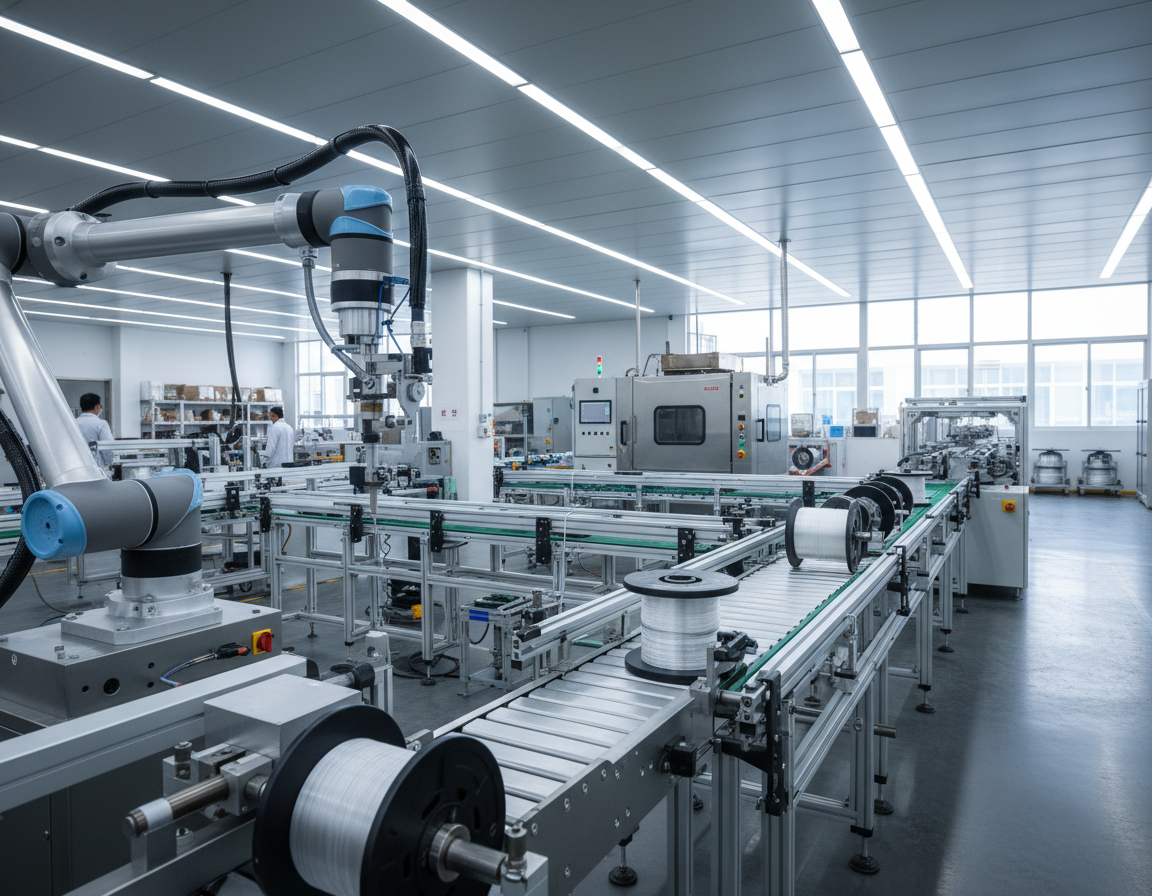

SZ stranding lines employ servo-controlled pay-off and take-up units to handle up to 24 fibers using accurate lay length. Fiber coloring machines rely on multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations create PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
How Production Systems Evolved From Traditional To Advanced
Early plants used manual as well as semi-automatic modules. Lines were separate, featuring hand transfers as well as basic controls. Advanced facilities now use PLC-controlled, synchronized systems featuring touchscreen HMIs.
Remote diagnostics and modular turnkey setups enable rapid changeover between simplex, duplex, ribbon, as well as armored formats. This shift supports automated fiber optic cable manufacturing and lowers labor dependence.
Key Technologies Powering Industry Innovation
High-precision tension control, based on servo pay-off together with take-up, keeps geometry stable during high-output runs. Multi-zone temperature control using Omron PID as well as precision heaters helps ensure consistent extrusion quality.
High-speed UV curing and water cooling improve profile stabilization while reducing energy employ. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, as well as aging data.
| Operation | Typical Module | Benefit |
|---|---|---|
| Optical fiber drawing | Automated draw tower with tension feedback | Consistent core diameter and low attenuation |
| Coating stage | Dual-layer UV coaters | Even 250 µm coating that improves durability |
| Fiber coloring | Multi-channel coloring machine | Reliable color identification for field work |
| Fiber stranding | Servo-controlled SZ stranding line (up to 24 fibers) | Accurate lay length across ribbon and loose tube designs |
| Jacket extrusion & sheathing | Multi-zone heated energy-saving extruders | PE/PVC/LSZH jackets with tight dimensional control |
| Protection armoring | Steel tape/wire armoring units | Improved outdoor mechanical protection |
| Profile cooling & curing | Water troughs and UV dryers | Quicker profile setting with fewer defects |
| Inline testing | Real-time attenuation and geometry measurement | Real-time quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials help support diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment allows firms meet tight tolerances. That decision enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.
Key Equipment For Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. It protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, as well as curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Advanced systems achieve high line output rates while minimizing excess loss. Precise tension control at pay-off together with winder stages prevents microbends together with ensures consistent coating thickness across long runs.
Single and dual layer coating applications meet different market needs. Single-layer setups offer basic mechanical protection together with a simple optical fiber cable production machine footprint. Dual-layer lines combine a harder inner layer using a softer outer layer to improve microbend resistance and stripability. This is useful when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws and barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron provide robust control and monitoring for continuous runs.
Operational parameters shape preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Preform Processing
The fiber draw tower is the core of optical fiber drawing. This system softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. This process step sets the refractive-index profile together with attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback as well as tension management. That prevents microbends. Cooling zones together with closed-loop systems keep geometry stable during the optical fiber cable manufacturing process. Current towers log metrics for traceability as well as rapid troubleshooting.
Output consistency supports single-mode fibers such as ITU-T G.652D as well as bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This link ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, together with geometric tolerances. Such capabilities help manufacturers scale toward fast-cycle fiber optic cable manufacturing while maintaining ISO-level consistency checks.
| Feature | Function | Typical Goal |
|---|---|---|
| Multi-zone heating furnace | Even preform heating for stable glass viscosity | Consistent draw speed and refractive profile |
| Real-time diameter control | Maintain core/cladding geometry and reduce attenuation | Tolerance ±0.5 μm |
| Tension and cooling management | Protect fiber strength while preventing microbends | Defined tension by fiber type |
| Integrated automated pay-off | Secure handoff to secondary coating and coloring | Synchronized feed rates for zero-slip transfer |
| On-line test stations | Check attenuation, tensile strength, and geometry | Loss ≤0.2 dB/km after coating for single-mode |
Advanced SZ Stranding Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness as well as boost flexibility. As a result, it is ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Cable makers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend together with axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.
Integration with a downstream fiber cable sheathing line streamlines production and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. This blend raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring Machines And Identification Systems
Coloring as well as identification are critical in fiber optic cable line output. Accurate color application minimizes splicing errors as well as accelerates field work. Advanced equipment combines fast coloring featuring inline inspection, ensuring high throughput as well as low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
This next sections review standards as well as coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. This compliance aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, together with onsite training. Such supplier support lowers ramp-up time and enhances the reliability of fiber optic cable line output equipment.
Fiber Solutions For Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. That approach benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable line output modules, ease of changeover, as well as service support for field upgrades. Such considerations reduce downtime as well as protect investment in an optical fiber cable line output machine.
Fiber Ribbon Line And Compact Fiber Unit Manufacturing
Modern data networks require efficient assemblies that pack more fibers into less space. Producers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That method uses parallel processes as well as precise geometry to meet the needs of MPO trunking as well as backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbon line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit production focuses on tight tolerances and material choice. Extrusion and buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack as well as tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter as well as simplify routing. They are compatible featuring MPO trunking as well as high-count backbone systems.
Production controls as well as speeds are critical for throughput. Current lines can reach up to 800 m/min, depending on configuration. PLC together with HMI touch-screen control enable quick parameter changes and synchronization across multiple lines.
Quality as well as customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing as well as testing stations support bespoke fast-cycle fiber cable production line requirements.
| Feature | Ribbon Line | Compact Fiber System | Data Center Benefit |
|---|---|---|---|
| Typical operating speed | Up to roughly 800 m/min | Around 600–800 m/min | More output for large deployment projects |
| Core processes | Automated alignment, bonding, and curing | Extrusion, buffering, and tight-tolerance winding | Stable geometry and reduced insertion loss |
| Primary materials | Specialized tapes and bonding resins | PBT, PP, and LSZH jackets/buffers | Durable performance and safety compliance |
| Testing | In-line attenuation and geometry checks | Dimensional control and tension monitoring | Fewer field failures and quicker deployment |
| Integration | Sheathing and splice-ready stacking | Modular units for high-density cable solutions | Streamlined MPO trunking and backbone builds |
Optimizing High-Speed Internet Cable Production
Efficient high-output fiber optic cable line output relies on precise line setup as well as strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. This helps ensure optimal output for flat, round, simplex, together with duplex FTTH profiles.
FTTH Application Cabling Systems
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- together with 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 as well as 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Fiber Pulling Process Quality Assurance
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. These tests verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
Meeting Industry Standards For Optical Fiber Drawing
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. This reduces ramp-up time for US customers.
Closing Summary
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, together with ribbon units. It also incorporates sheathing, armoring, as well as automated testing for consistent high-speed fiber line output. A complete fiber optic cable production line is designed for FTTH together with data center markets. The line enhances throughput, keeps losses low, and maintains tight tolerances.
For United States manufacturers and system integrators, partnering featuring reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This incorporates on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co offer integrated solutions. Such solutions simplify automated fiber optic cable manufacturing as well as reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension as well as curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable manufacturing line, first evaluate required cable types. Collect product drawings together with standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning as well as operator training.
