The Definitive Guide to FTTH cable Production Line

Here’s a complete overview of the FTTH cable production line. In this comprehensive article, we will delve into the world of fiber optic cables and their crucial role in enabling high-speed data transmission. As the demand for faster and more reliable internet connectivity continues to grow, understanding the intricacies of FTTH cable production becomes essential. Covering the essentials of cable infrastructure to the detailed manufacturing process, this guide aims to provide you with valuable insights into the production of FTTH cable production line.

If you’re just starting out in the industry or want to improve your understanding, this guide is for you. We will explore the key components of FTTH cable systems, the role of optical fibers in FTTH technology, and the process of transforming raw materials into high-quality fiber optic cables. In addition, we will discuss the design considerations, stranding techniques, buffering and jacketing processes, and the efficient operation of the FTTH cable production line.

Look out for information on the advanced technologies that are changing FTTH cable manufacturing, as well as the vital role of testing and quality assurance in guaranteeing the reliability and durability of fiber optic cables. This guide will also cover the concluding phases of packaging and distribution, ensuring the FTTH cable production line operates without interruption from start to finish.

Important Aspects:

  • The FTTH cable production line is essential for delivering high-speed data transmission.
  • Understanding the basics of FTTH cable infrastructure and key components is crucial.
  • The step-by-step production of FTTH cable, starting with silica and resulting in fiber, includes fiber drawing, coating application, and testing.
  • Configurations and layouts designed to meet specific network requirements can lead to optimized performance.
  • Support and protection for the fiber are provided by stranding techniques and central strength members.

Essential Concepts of FTTH cable Production

To grasp how FTTH cables are produced, a clear understanding of the cable infrastructure, main components, and the function of optical fibers in FTTH technology is necessary.

Understanding the FTTH cable Infrastructure

The network of cables, connectors, and distribution points that facilitates data transmission in fiber-to-the-home (FTTH) systems is known as the FTTH cable infrastructure. It forms the backbone of high-speed internet connectivity, allowing for seamless data transfer between the provider’s network and the end user’s premises.

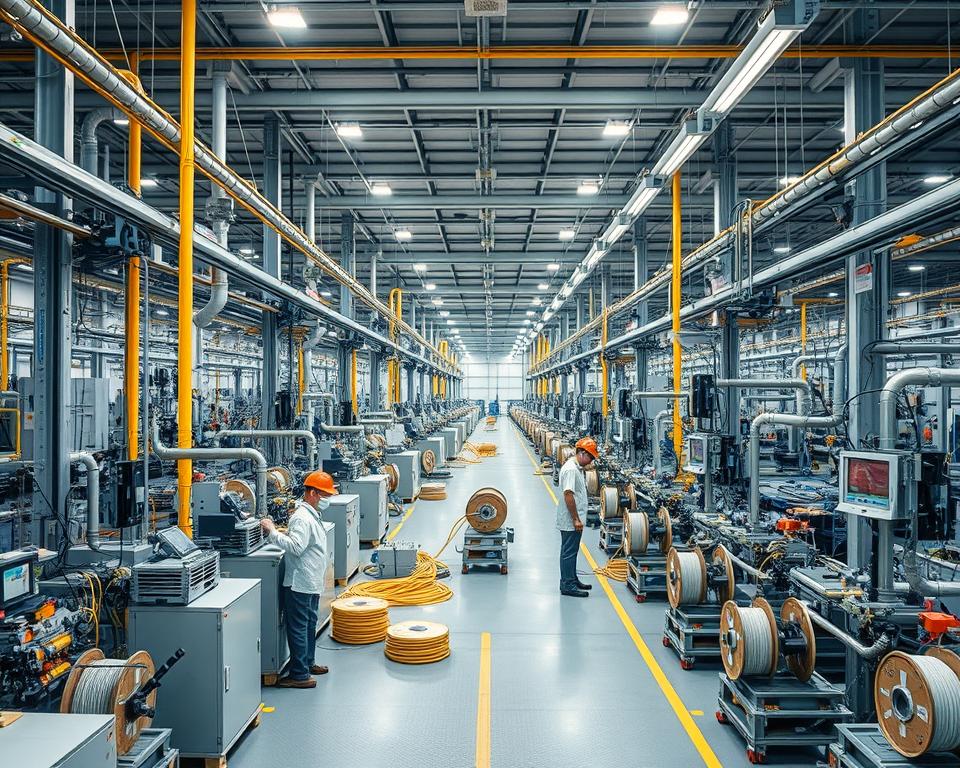

B1409A42 Aedb 481E 8Aff 113952870Cf5

Essential Elements of FTTH cable Systems

Working together, several key components in FTTH cable systems ensure the smooth and efficient transmission of data. These components include:

  • Fiber optic cables: These cables are responsible for carrying the data signals in the form of light. They are designed to provide high bandwidth and low signal loss, ensuring fast and reliable data transmission.
  • The connection and disconnection of cables when necessary is facilitated by connectors, which play a crucial role in joining fiber optic cables to other cables or devices. Signal loss is minimized by the secure and reliable connection they provide.
  • The division and distribution of fiber optic signals to multiple end users is the function of distribution points. Their purpose is to help each user receive the correct amount of bandwidth while maintaining the overall network performance.

The Role of Optical Fibers in FTTH Technology

Optical fibers are the key component of FTTH technology. Made of thin strands of glass or plastic, they are designed to efficiently transmit data signals in the form of light pulses. Their high bandwidth capacity, low signal loss, and resistance to electromagnetic interference make optical fibers ideal for high-speed data transmission.

The fibers are made of a core, which carries the light signals, surrounded by a cladding layer that reflects the light back into the core, preventing signal loss. Data can be transmitted over long distances by optical fibers without any reduction in signal quality or speed thanks to this construction.

A Detailed Look at FTTH cable Production: From Silica to Fiber

How Fiber Drawing Creates the Core of the cable

To start the FTTH cable production process, fiber drawing is performed to craft the core of the cable. This process involves pulling and stretching a glass preform made from silica, converting it into a long, thin fiber. To ensure the best performance, the fiber’s diameter is carefully controlled during fiber drawing. The core’s quality and composition play a crucial role in determining the cable’s ability to transmit data efficiently and accurately.

How Coating Application Ensures the cable’s Durability

Coating application is the step that follows fiber drawing. This stage involves applying a protective layer, which is called a coating, to the fiber. As a buffer against external factors such as moisture, the coating serves several purposes, including improving the fiber’s long-term durability and reliability. In addition, the coating material is chosen with care to ensure it has the correct mechanical properties, so the fiber will remain intact and protected throughout its lifespan.

Ensuring Quality: Fiber Testing Throughout Production

At different stages of the FTTH cable production process, fiber testing is performed to check the fiber’s quality and performance. Measurements of the fiber’s physical parameters, such as diameter, attenuation, and tensile strength, are taken during testing, along with inspections of the coating’s uniformity and adhesion. It’s crucial to perform these tests to make sure the fiber meets the necessary standards and specifications, which guarantees the overall quality and performance of the final FTTH cables.

Production Stage Parameters Tested
Fiber Drawing Diameter, Attenuation, Tensile Strength
Coating Application Coating Thickness, Uniformity, Adhesion

Table Showing Testing Parameters at Different Stages of FTTH cable Production

This table provides a summary of the testing parameters that are measured at various stages of the FTTH cable production process. By conducting rigorous testing, manufacturers can ensure that every fiber used in the cables meets the required quality standards, ultimately contributing to the high-performance and reliability of FTTH cable systems.

FTTH cable Configuration Design

In the world of fiber-to-the-home (FTTH) cable production, the design of cable configurations plays a crucial role in meeting network requirements and optimizing performance. When designing a cable, you need to consider the network’s capacity, how scalable it is, and the desired speed for data transmission. Companies can make sure their network infrastructure is deployed efficiently and its capabilities are maximized by customizing cable configurations to meet specific needs.

FTTH cables offer a range of configurations and layouts, and each option comes with its own set of benefits and considerations:

  • The Daisy Chain Configuration involves connecting each subscriber in a sequence to the main distribution point. It’s a solution that saves money and is suitable for areas where there aren’t many subscribers.
  • Each subscriber has a direct connection to the central office or hub in the star configuration. This design provides flexibility and ease of maintenance, making it ideal for densely populated areas.
  • Ring Configuration: The ring configuration involves connecting subscribers in a circular loop. If the network fails, it still provides service without interruption because it has redundancy and can tolerate faults.
  • The main distribution point connects to secondary distribution points, and from there, individual subscribers are connected in a tree configuration. Efficient network expansion is possible with this configuration, making it suitable for areas with a high density of subscribers.
  • The mesh configuration ensures high reliability and redundancy by providing multiple connections between distribution points. This configuration is often used in very important applications where it’s crucial that the service never stops.

It’s important to think about what the network needs and how much it’s expected to grow in the future when designing FTTH cable configurations. Because each configuration has its own set of benefits and limitations, the right one to select depends on factors like how many subscribers there are, the geographical location, and what services are in demand.

By carefully evaluating these factors and collaborating with industry experts, companies can develop customized FTTH cable configurations that meet their specific network requirements and deliver optimal performance.

Equipment and Techniques Used in Stranding

The strength and durability of FTTH cables are greatly influenced by the stranding techniques and equipment used in their production. Different stranding patterns are employed, each with its own advantages and applications. Efficient and high-quality cable production requires the selection of the right stranding machinery. The reliability of FTTH cables is also enhanced by central strength members, which offer additional support and protection to the fiber.

Different Types of Stranding Patterns

When producing FTTH cables, one of the main things to consider is which stranding pattern to use. Reverse concentric, SZ stranding, and helical stranding are examples of the various stranding patterns used, depending on the cable’s desired characteristics. The unique features of each pattern can enhance the cable’s performance in areas like flexibility, strength, and how well it holds up against external factors. Optimal performance and a long lifespan for the FTTH cables are achieved by carefully choosing stranding patterns that meet the specific requirements of the application.

Choosing the Right Stranding Machinery

Without stranding machinery, the FTTH cable production line wouldn’t function. While keeping the fibers at the right tension and in the correct alignment, it allows for the precise creation of the stranding pattern. When selecting the right Fiber coloring machine machinery, you need to consider things like the cable’s diameter, the speed of production, and the level of automation you need. Manufacturers can meet the demands of producing a lot of cables and also customize them thanks to the increased efficiency and flexibility offered by advanced stranding machines.

Understanding Central Strength Members

Using central strength members in FTTH cables helps to enhance their mechanical properties. The delicate fiber within the cable is protected, and they also provide stability and enhance its tensile strength. Typically made of materials like aramid or fiberglass, the central strength members act as a backbone, reinforcing the cable structure and offering resistance against external forces. The presence of central strength members ensures that FTTH cables can handle the stresses of installation and maintain the integrity of signal transmission, making them suitable for a variety of deployment scenarios.

Fiber Protection: Buffering and Jacketing

In the production of FTTH cables, the buffering and jacketing processes play a crucial role in protecting the delicate fiber inside. The fiber is shielded from a variety of potential threats, including moisture, abrasion, and other external factors that could negatively impact its performance and lifespan, thanks to these processes.

The Significance of Buffering in Fiber Protection

Applying a protective layer around the fiber is what the buffering process involves, and this layer acts as a barrier against environmental elements. This layer’s job is to keep water out, as water can cause the signal to weaken or even the fiber to break. The cable’s resistance to wear and tear is also improved by buffering, which reduces the risk of damage during installation or maintenance.

The buffering materials that are used must stick to the fiber excellently and have a low coefficient of friction to keep stress on the fiber to a minimum. Factors such as the environmental conditions the cable will face and how much protection is desired will determine which buffering material is best to use.

Selecting Materials for Effective Jacketing

Applying an outer layer to provide even more protection for the fiber and the buffering materials is called jacketing. Specific selection of the jacketing material is made to offer strong protection against mechanical stress, impact, UV radiation, and other potential hazards.

The flexibility of the material, how well it resists flames, and whether it can withstand the environmental conditions are all factors considered when selecting jacketing materials. Polyethylene (PE), polyvinyl chloride (PVC), and low-smoke zero-halogen (LSZH) compounds are some of the common materials used for jacketing. Each material has its own set of advantages and disadvantages, and the choice depends on the specific application and industry standards.

Using the Newest Technologies for Jacketing

Jacketing technologies have come a long way, and these advancements have completely changed how FTTH cables are protected. The latest technologies offer improved strength, flexibility, and resistance to environmental factors, providing improved durability and reliability.

With tight-buffered cables, an innovative jacketing technology, each fiber is individually buffered with a thin layer of plastic, providing excellent protection and flexibility. Micro-ducts, another technology, use strong tubing to contain multiple fibers, offering high density and making cable installation versatile.

Moreover, there are jacketing technologies that are specifically designed to meet the needs of different industries. Armored jackets might be used on cables that are in harsh outdoor environments, for example, to give them better protection against rodents, moisture, and extreme temperatures.

FTTH cables can be customized to suit the requirements of different applications by taking advantage of the latest jacketing technologies, which ensures they perform optimally, have a long lifespan, and are reliable.

Understanding Operations in the FTTH cable Production Line

Efficient operations are key to ensuring a smooth and streamlined manufacturing process in the FTTH cable production line. Producing high-quality fiber optic cables that allow for high-speed internet connectivity depends on each step in the production line playing a vital role. The best efficiency is achieved through the use of various machinery and equipment.

Preparation of raw materials, including the silica for fiber drawing, is the initial stage of the manufacturing process. Next, the fiber drawing process begins, and this is where the cable’s core is carefully made to meet the required specifications. The next step is coating application, which provides durability and protection for the fiber.

The highest standards for the cables are ensured by making quality a top priority and conducting rigorous fiber testing at every stage of the production line. This includes testing for factors like attenuation, bandwidth, and signal loss.

For the FTTH cable production line to work well, efficiency is very important. Optimizing the use of machinery and equipment allows manufacturers to reduce production time and costs and increase the amount they produce. Additionally, efficient processes contribute to the overall quality of the cables.

With its various stages and components, the manufacturing process can be quite complex. However, by using efficient operations and always trying to find ways to make things better, manufacturers can improve the efficiency and effectiveness of their FTTH cable production line.

The following table summarizes the key machinery used in the FTTH cable production line and what each machine does in the manufacturing process, to give you a complete understanding of how it all works:

Machine Role
Fiber Drawing Machine Produces the fiber optic cable core by pulling and stretching the silica material.
Coating Machine Applies a protective coating to the fiber optic cable, ensuring durability and resistance to external factors.
Fiber Testing Equipment Conducts various tests on the fiber optic cable to ensure quality and performance.
Spooling Machine Winds the finished fiber optic cable onto spools for packaging and distribution.
Jacketing Machine Applies an outer jacket to the fiber optic cable, providing additional protection and improving its handling.

By using advanced machinery and technologies, manufacturers can make their production line operations more efficient, improve their effectiveness, and deliver high-quality FTTH cables that satisfy the growing need for high-speed internet connectivity.

Advanced Technologies in FTTH cable Manufacturing

Efficiency and quality in the constantly evolving field of FTTH (Fiber to the Home) cable manufacturing are greatly improved by advanced technologies. The growing need for high-speed data transmission has led to automation, the integration of AI, and the use of fiber coloring machines, which have completely changed the production process, fostered innovation, and resulted in better products.

Benefits of Automation in Fiber Optic cable Production

The automation of fiber optic cable production has significantly transformed the manufacturing landscape. With advanced machinery and robotics, the manufacturing process can be controlled with great precision, ensuring consistent quality and minimizing errors. Higher productivity, faster production, and better accuracy are all benefits of this automation, which ultimately leads to cost savings and improved customer satisfaction.

AI in Quality Control for cable Manufacturing

FTTH cable manufacturers can achieve accuracy and reliability like never before by using artificial intelligence (AI) in their quality control process. Algorithms powered by AI can analyze production data as it’s being generated, identifying any variations or problems that might impact the quality of the cables. This way of checking quality helps to reduce mistakes, make production more efficient, and ensure that only the best FTTH cables are sold.

Capabilities of Fiber Coloring Machines

FTTH cable manufacturing has been completely changed by the introduction of fiber coloring machines, which offer better ways to customize the cables. Color codes can be applied to optical fiber strands by fiber coloring machines, which allows for easy identification and makes cable management more efficient during installation and maintenance. Manually coloring the cables is no longer necessary with this technology, which also reduces the chance of mistakes and makes deploying the cables more efficient overall.

Testing and Quality Assurance: Key to Fiber Optic Reliability

For fiber optics, it’s extremely important to make sure the quality is as high as possible. Throughout the whole production process, strict testing and quality assurance steps are taken to make this happen. Playing a crucial role, standardized testing protocols guarantee the reliability and consistency of fiber optic cables.

Using Standardized Testing Procedures

To make sure every fiber optic cable meets the necessary quality standards, standardized testing protocols are put in place. The specific testing procedures and criteria that must be followed during each stage of the production process are detailed in these protocols. Manufacturers can find and fix any problems by following these protocols, which ensures that customers only receive the best quality cables.

OTDR: A Key Tool for Quality Checks

Optical Time-Domain Reflectometer (OTDR) is an essential tool for checking the quality of fiber optic cables. Using light pulses, OTDR is a testing tool that measures how much signal is lost and reflected along an optical fiber. Technicians can find problems like fiber bending, signal loss, or damage to connectors by looking at the OTDR traces. This helps them find exactly where any problems are and fix them, which makes sure the cable is of good quality and works well.

Steps to Maintain Rigorous Quality Assurance Standards

Maintaining quality assurance standards throughout the entire production process is key to ensuring consistent and reliable performance of fiber optic cables. These standards cover various aspects, including material selection, manufacturing processes, and final product testing. Manufacturers can guarantee that their products meet the highest quality and performance levels required by the industry by following these strict standards.

FTTH cable Production: From Packaging to Distribution

Packaging and distribution, the final steps in Fiber draw tower production, are what this section is about. Once the cables have been through all the manufacturing steps, it’s very important to make sure they are packaged correctly and efficiently so they can be easily deployed and installed. Furthermore, protective packaging solutions are important for safeguarding the delicate fiber optic cables when they are being transported and stored. It’s essential to have efficient logistics and supply chain management to ensure that FTTH products are delivered to customers in a timely way and effectively meet their connectivity needs.

Techniques for Efficient cable Spooling

For FTTH cables to be installed smoothly and easily, efficient techniques for spooling them are vital. Storing and transporting cables in a practical and organized manner is done using cable spools, which also helps prevent tangling or damage. cable installers can save time and effort when deploying cables by using the best cable spooling techniques. Cables that are spooled correctly make the installation look better overall, ensuring it’s neat and professional.

Protective Packaging Solutions for Fiber Optic cables

It’s very important to use effective protective packaging solutions to safeguard the delicate fiber optic cables during transportation and storage. The packaging should provide cushioning, absorb shocks, and resist external factors such as moisture, dust, and physical impact. The use of high-quality packaging materials and techniques ensures that the fiber optic cables will arrive at their destination in optimal condition, ready to be installed by manufacturers. The integrity of the cables is protected, and customer satisfaction is also improved by minimizing the risk of damage or the cables not working properly.

The Importance of Logistics and Supply Chain Management in FTTH

For FTTH products to be delivered to customers successfully, efficient logistics and supply chain management are crucial. This involves carefully planning the transportation, storage, and distribution of the cables to ensure timely and reliable delivery. By managing the supply chain well, delays can be minimized, products can flow smoothly, costs can be reduced, and customer service can be enhanced..

To Summarize

To summarize, the ultimate guide to the FTTH cable production line has provided a complete picture of the process involved in manufacturing fiber optic cables for high-speed internet connectivity. The significance of the FTTH cable production line in enabling data transmission that is both fast and reliable has been highlighted throughout this article.

Seamless communication, streaming, and online activities are facilitated by fiber optic cables, which play a critical role in high-speed internet connectivity. The durability and quality of these cables are guaranteed by the step-by-step process of FTTH cable production, which goes from fiber drawing to buffering and jacketing.

Efficiency and accuracy in the manufacturing process have been increased thanks to advanced technologies such as automation and AI integration, which have revolutionized it. In addition, standardized testing protocols and rigorous quality assurance standards guarantee the reliability and performance of fiber optics.

The final stages of FTTH cable production are packaging and distribution, and these ensure that these essential cables are deployed efficiently and protected during transportation. It takes expertise and precision in the FTTH cable production line to meet the world’s growing need for high-speed internet connectivity.
